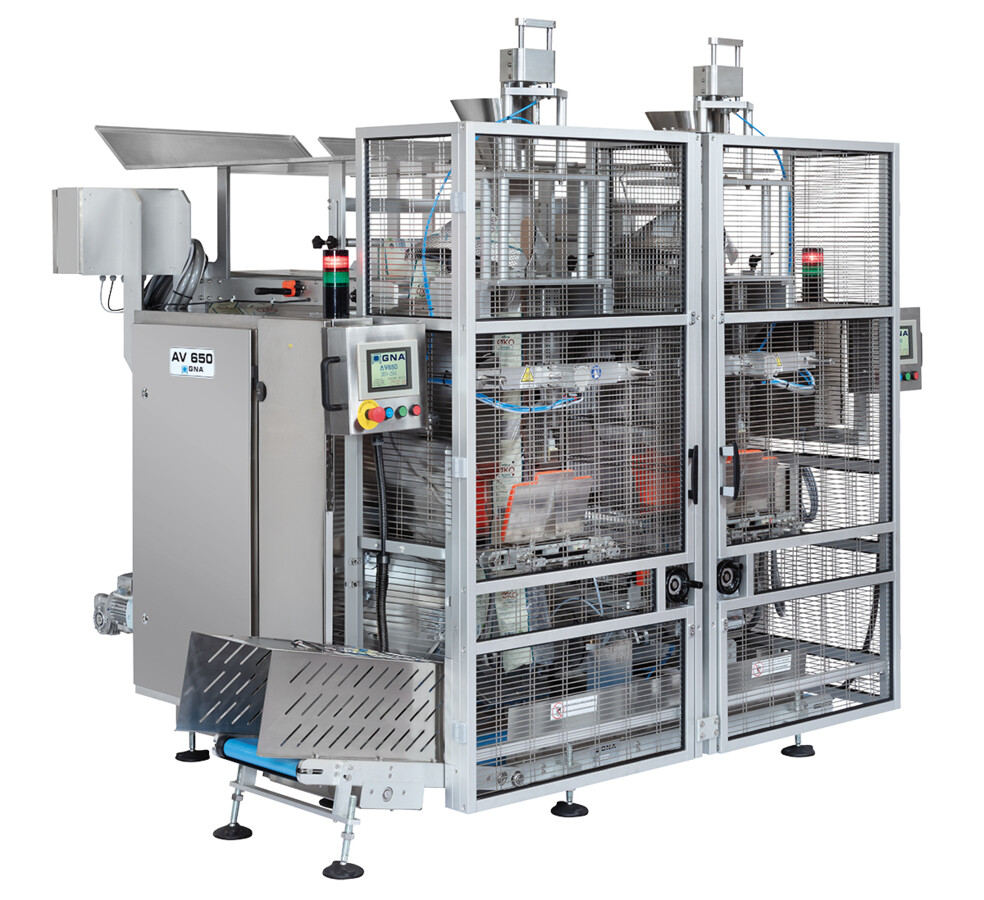

AV650 TWIN

AV650 Twin is the ideal solution for high-speed packaging lines in combination with multi-head weighers and product discharge systems designed according to the required application. It is a VFFS vertical double-bagger system designed for flexibility and optimisation of working space. AV650 Twin is a perfect machine for packaging different types of food products, from fruit and vegetables and fresh-cut, to bakery, confectionery etc. in vertical pillow and square-bottom bags. With important technical innovations that improve its efficiency, it offers a wide range of optional accessories that make this machine fully customisable. AV650 Twin offers: a new film pulling system, stainless steel construction, streamlined management with the latest generation PLC and Touch Screen panel to create production recipes easily and intuitively, brushless servomotors for high precision in bag length and crosswise sealing, ultrasonic sealing upon request. The forming tube changeover is quick, facilitating operator functions. The electrical cabinet housed inside the packaging machine allows a reduction in space, making the AV650 Twin easy to sanitise.

High production speed - Multireference - Fast film change - Optimisation of production space

Areas of application

  • Fruit&Vegetables
  • Pasta/Rice
  • Salty snacks
  • Fresh cut

Style of packaging

Main technical data

Speed (cycles per minute) 90 to 160 cycles per minute, depending on product and working conditions
Film width max 600 mm
Bag length max 600 mm
Bag width max 290 mm
Electrical consumption 7.0 Kw
Compressed air consumption 240 NL/min
